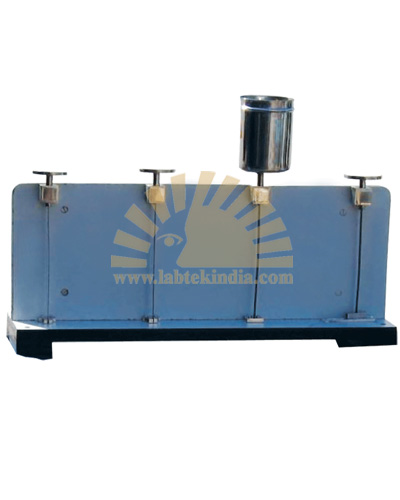

Behavior of Column and Struts Apparatus

Model: SL1106

Experimental and analytical study of behavior of struts with various end conditions.
Apparatus consists of four spring steel columns which are put along a vertical wooden board. These four columns have different end conditions as below:
1. Both ends pinned
2. Both ends fixed
3. One end pinned and other fixed
4. One end fixed and other end free Apparatus is supplied complete with a supporting stand and a set of weights.'
