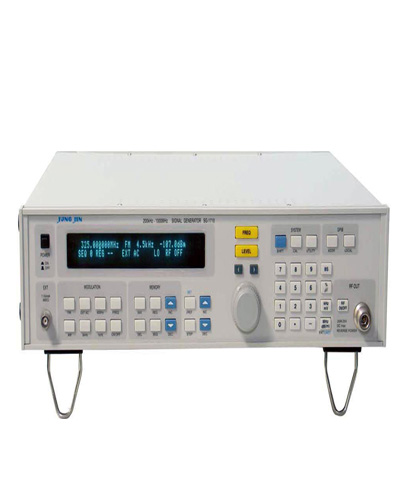

AM/FM signal generator

LABTEKINDIA MODEL: SL-EE-403

Features:

• DDS technology provides for a superior signal with low distortion and high stability.
• Both RF output and function output
• 3.5” QVGA color LCD and soft keys
• Variety of waveforms: Sine, square, pulse, triangle, ramp

Specifications:

• Frequency Range: 100 µHz~80MHz
• Frequency resolution: 1 µHz
• Frequency stability: ≤5 x 106
• RF output level: -127dBm ~ +13dBm
• RF output resolution: 0.1dB
• Output impedance: 50Ω, VSWR 1.5
• AM Modulation: Frequency: int. 100mHz~10kHz, ext. 20Hz~10kHz, Resolution: 0.1%
• AM Modulation: Frequency: int. 100µHz~10kHz, Resolution: 100Hz
